Pacific Arc Electrical Controls Template Guide, Standard Symbols Used in Machinery and Automation Circuits - style: Electronic Controls
$14.14
Skip to product information
Pacific Arc Electrical Controls Template Guide, Standard Symbols Used in Machinery and Automation Circuits - style: Electronic Controls
$14.14
Taxes included.
Shipping calculated at checkout.
About this item

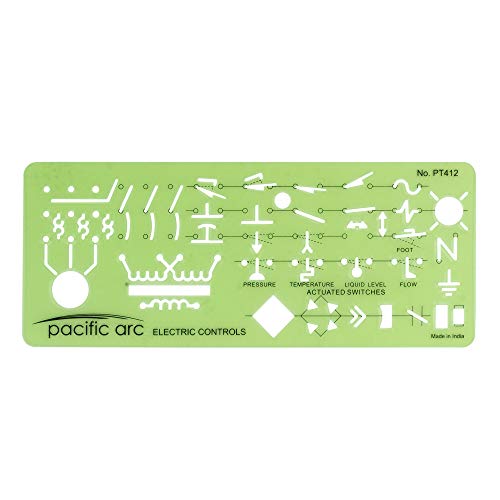

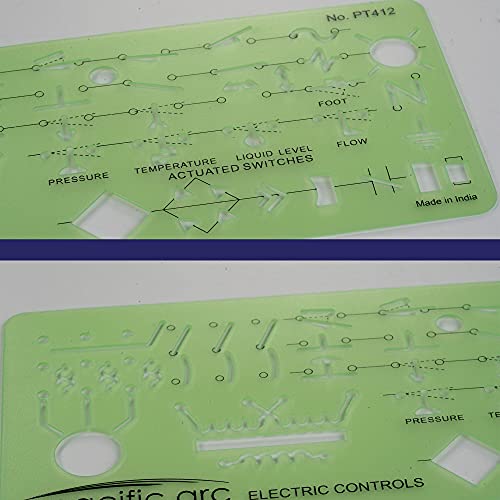

- COMPREHENSIVE TEMPLATE - Taking symbols from ANSI Y32.2, this template features all the major electrical symbols for contacts, switches, contactors, and relays. Easily design any diagram or detailed plan without any problems.
- COMPACT DESIGN - Measuring 8 Inches by 3.25 Inches, This compact design is perfect for drawing designs on the go. Able to fit in any work bag, never be without this template. Made in correct relative size for photographic reproduction.

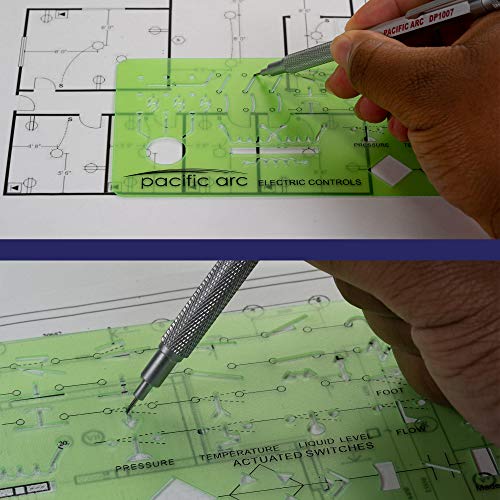

- MADE OF HIGH QUALITY PLASTIC - The translucent see through green plastic makes it easy to create your exact shape without drawing in the wrong place. It's convenient size makes it the perfect travel template for any professional or student. works on many surfaces including paper, vellum, fabric, canvas, wood, and mylar.
- THE PERFECT GIFT - Gift this shape stencil to the artist in your life. Give them a practical, memorable gift that will further their creativity to the next level.
Overview
- Material: Plastic
- Brand: Pacific Arc
- Style: Electronic Controls
- Product Dimensions: 9.5"L x 4"W
- Item Weight: 0.01 kg
- Set Name: Pacific Arc Electrical Template Guides
- Manufacturer: Pacific Arc
- UPC: 382360621720 038236062172
- Number of Items: 1
- Size: Electronic Controls
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
